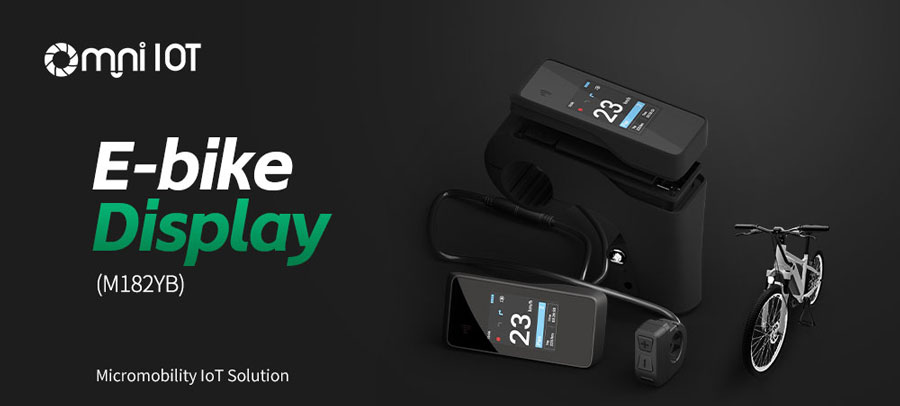

OMNI IOT Display for Ebike

This display for ebike is more convenient and safer for riders.This display for ebike that is an essential part of ebike solution offers significant advantages

for e-bike manufacturers and operators, supporting both direct sales and shared mobility models, including long-term and short-term rentals.

What are features of the display for ebike?

1. Multi-mode high-precision GPS positioning

      You can track vehicles through this ebike display for real-time monitoring,enhancing fleet management and anti-theft capabilities.

2. BLE 5.2 communication & 4G network connectivity

    This function enables fast,stable and dual-channel communication for seamless remote control,real-time data updates,and smarter interconnectivity.

3. RFID card unlocking

    RFID communication technology.Offers a quick and secure unlocking method, ideal for user authentication in shared mobility scenarios.

4. CAN Bus communication

    Provides robust data exchange with vehicle systems, enabling deeper integration for diagnostics, control, and performance optimization.

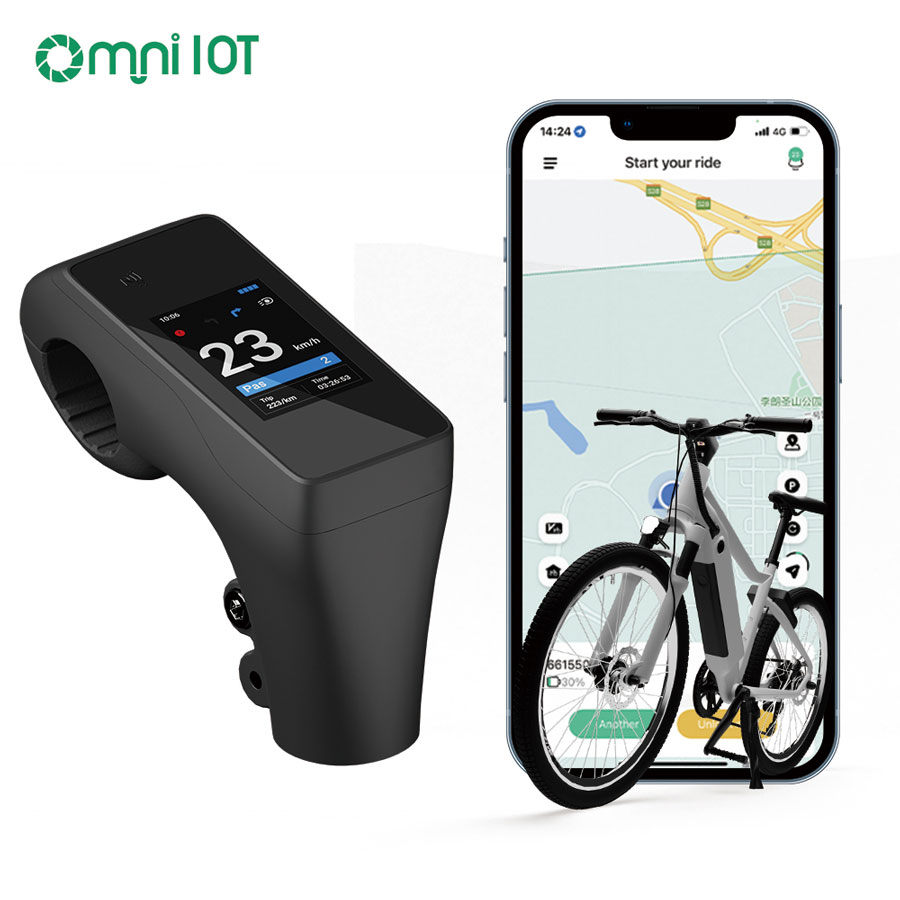

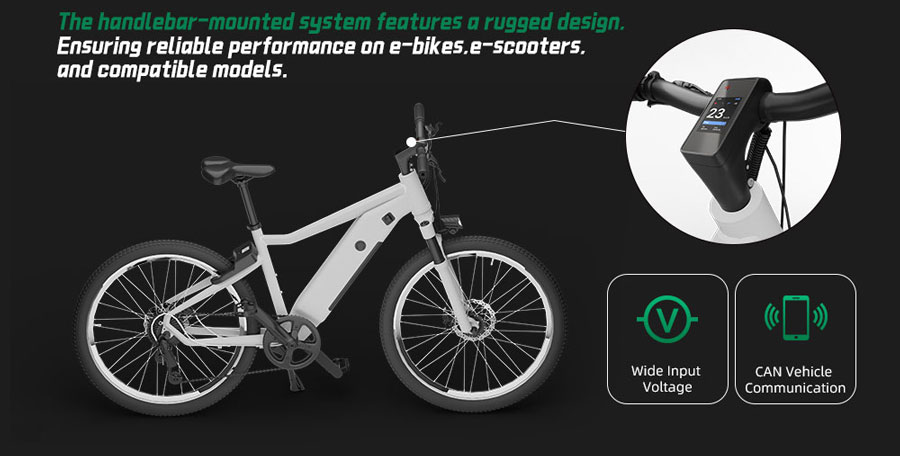

5. Handlebar-mounted design

    Built to withstand daily use with a solid, tamper-resistant structure—easy to install, difficult to break.

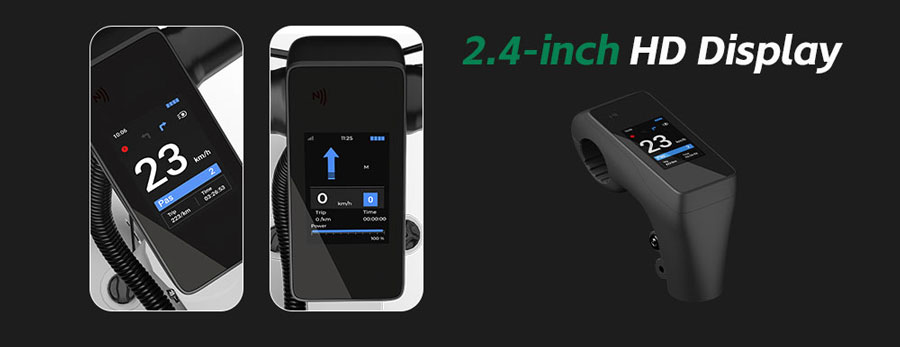

6. 2.4 inch high-definition display

    Delivers clear and vibrant visuals under all lighting conditions, with support for customizable UI to match your brand experience.

7. Wide input voltage

     Supports a variety of power systems, ensuring reliable performance across different e-bike models and battery platforms.

Frequently Asked Questions of OMNI IoT display

1. What are the key differences between the display for ebike and traditional IoT devices or standard displays on the market?

OMNI IOT display for ebike integrates an LCD screen and IoT module into a single unit, eliminating the need for separate installations on the vehicle. Unlike most traditional displays, which are typically standalone or limited to Bluetooth connectivity, the OMNI IOT display supports network communication (4G), Bluetooth (BLE), and CAN bus, making it more powerful and better suited for shared mobility scenarios. This integration enhances riding data visualization while maintaining strong backend connectivity.

2. What communication methods are supported between the display and the controller?

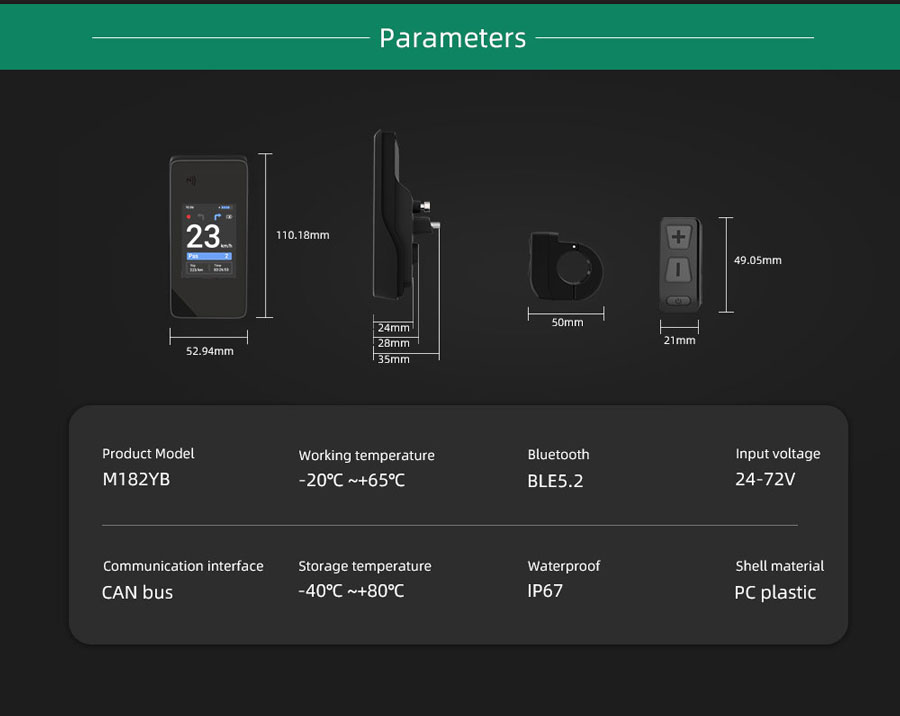

The M182YB ebike display supports CAN and has reserved interfaces for UART (serial communication).

3. Does the display support touch functionality?

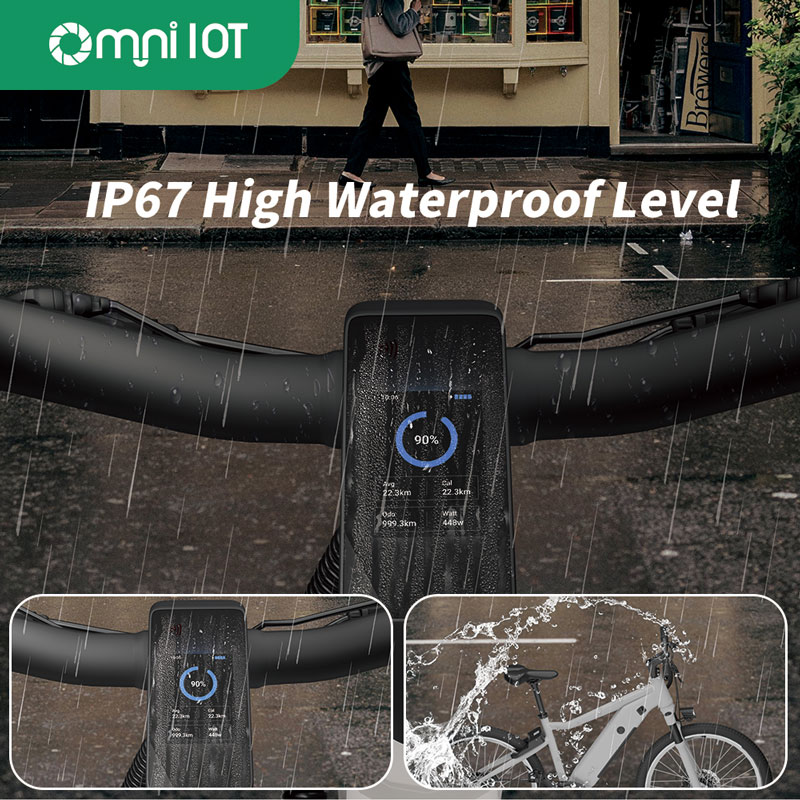

No. OMNI IoT displays do not support touch screens, as touch operation is often unreliable in outdoor environments, especially in rain. Physical interfaces ensure durability and consistent performance.

4. Does the display continue to work when powered off?

Yes. Even when turned off, the OMNI IoT display maintains network connectivity, similar to our IoT devices. It continues to report real-time GPS location and status to the backend, ensuring continuous monitoring regardless of lock/unlock state.

6. Does your IoT display support custom startup logos?

Default samples do not support custom logos. Custom logos require the client to provide the image files to our UI design team and may involve development work. If a neutral version (no OMNI logo) is preferred, please specify this when requesting a sample.

7. How long can the built-in battery support standby operation?

The internal 400mAh battery is designed only for short-term backup power in case the main power supply is disconnected. It can support basic functions for a few hours but is not intended for continuous standalone operation.

8. Can the screen brightness be adjusted?

Yes, the brightness can be adjusted using a Bluetooth configuration tool.

10. Is firmware upgrade supported?

Yes. The firmware can be upgraded via HTTP (over-the-air) or USB. Due to the size of UI files, UI updates are supported via USB only using a standard TYPE-C cable. (Detailed upgrade steps are available from the business team's shared drive.)
