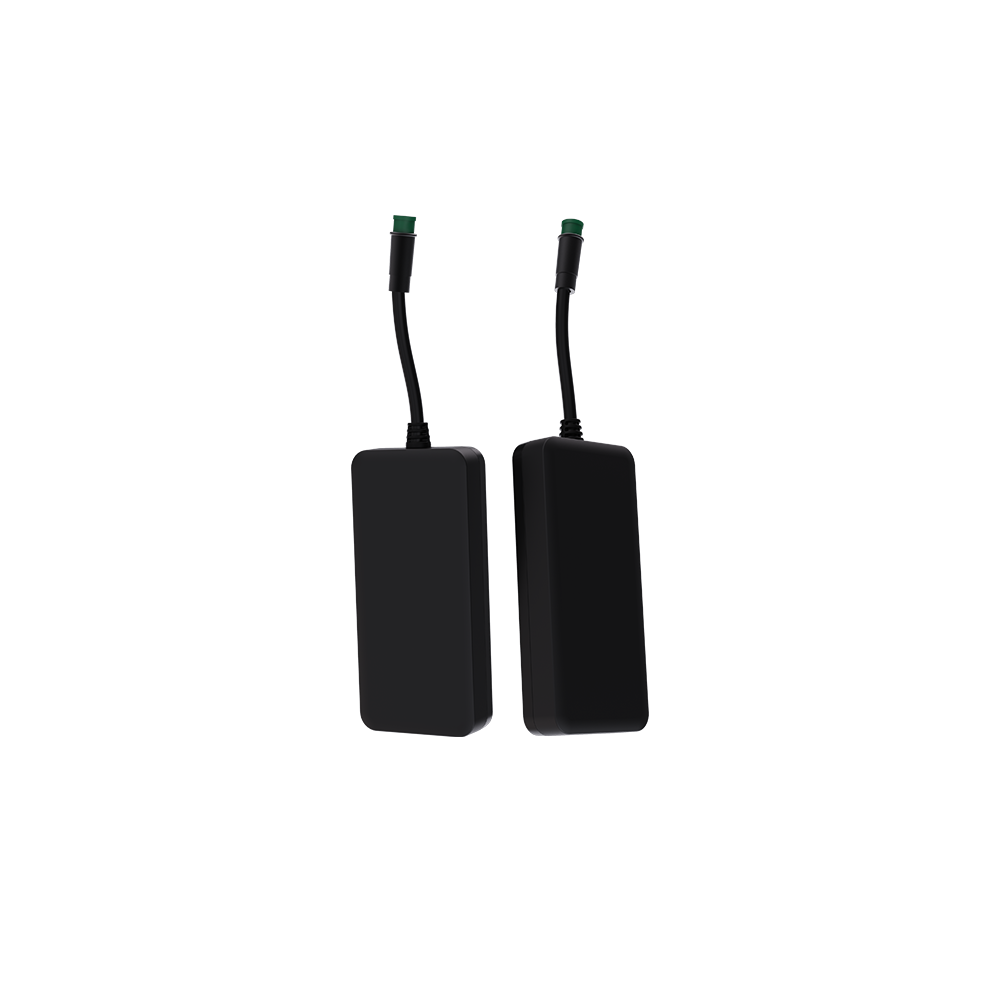

O504DWQ 4G Gps Tracker for Vehicle
This GPS locator is designed to integrate super functions like 4G network remote control,GPS real time position,Bluetooth communication,vibration detection,anti-theft alarming,more smart abilities are supported.
OMNI Vehicle GPS tracker specification
Communication with Controller:Level control/ UART
Communication with cloud server:MQTT
Vibration detection:Triaxial accelerometer
Working voltage:9-100V DC
Working current:≦500mA(9-100VDC )
Built-in battery:3.7V/90mAH
Built-in battery life:>0.5h（25℃）
Waterproof& dustproof :IP67
Outside shell material:PC+10%GF
Working temperature: -20℃～ +60℃
Storage temperature: -40℃～+80℃
Working humidity:10～93RH
SIM card:Micro size（Micro-SIM）
Dimension of the device:
60mm(L) × 41mm(W) × 15.8mm(H) (not including the wire)
Omni 4G vehicle GPS Tracking Device
Function list of O504DWQ vehicle gps tracker
|
Function list |
Function description |
|
Location |
Support single positioning and continuous positioning mode,can report the current vehicle position information regularly. Support GPS,GLONASS,BeiDou, Galileo，WIFI assistant location. |
|
Network communication |
Through the command of the server, the position, status of the vehicle can be obtained remotely, and can control the vehicle. |
|
Bluetooth |
Can realize real-time setting location parameter through bluetooth communication, and upgrade the system through bluetooth. |
|
OTA upgrade |
The device can support upgrading firmware and setting parameters remotely through server. |
|
Vibration detection |
There is acceleration sensor inside the device, and can detect abnormal vibration and upload the info to server. |
|
Falling to ground detection |
When the vehicle falls on the ground, the device will upload the info to the server. |
|
Failure report |
The failure of vehicle can be uploaded to server through IOT (UART communication, need support of the vehicle controller.) |
|
Communication port（optional） |
UART, Level control |
GPS performance
|
Location |
Support GPS,GLONASS,BeiDou, Galileo， WIFI assistant location system |
|
Sensitivity |
-158dBm |
|
Starting time |
Cold startup less than 120seconds, Warm startup less than 30seconds, (Open area, weather is sunny without shade, including coordination optimization) |
|
Location precision |
≤15meters（Open area, weather is sunny without shade.) |
|
Location condition |
Search satellites numbers≥4 satellites and signal noise over 30dB |
How to choose Auto GPS tracker ?
It is a trend that more and more enterprises and individuals choose to buy car GPS locator to protect their cars.
How to choose a good car GPS locator?Worried about your car stolen or want to know the car track?GPS locator can help.
However many people do not know how to buy car GPS locator at the beginning,today we will tell you how to choose car GPS locator.
Precise positioning. A worth-buying gps tracker vehicle tracker should built in advanced antenna,
which makes the signal more stable and can achieve faster and more accurate locking of vehicle position.
Users can check the location of vehicles in real time through mobile phone APP,computer.

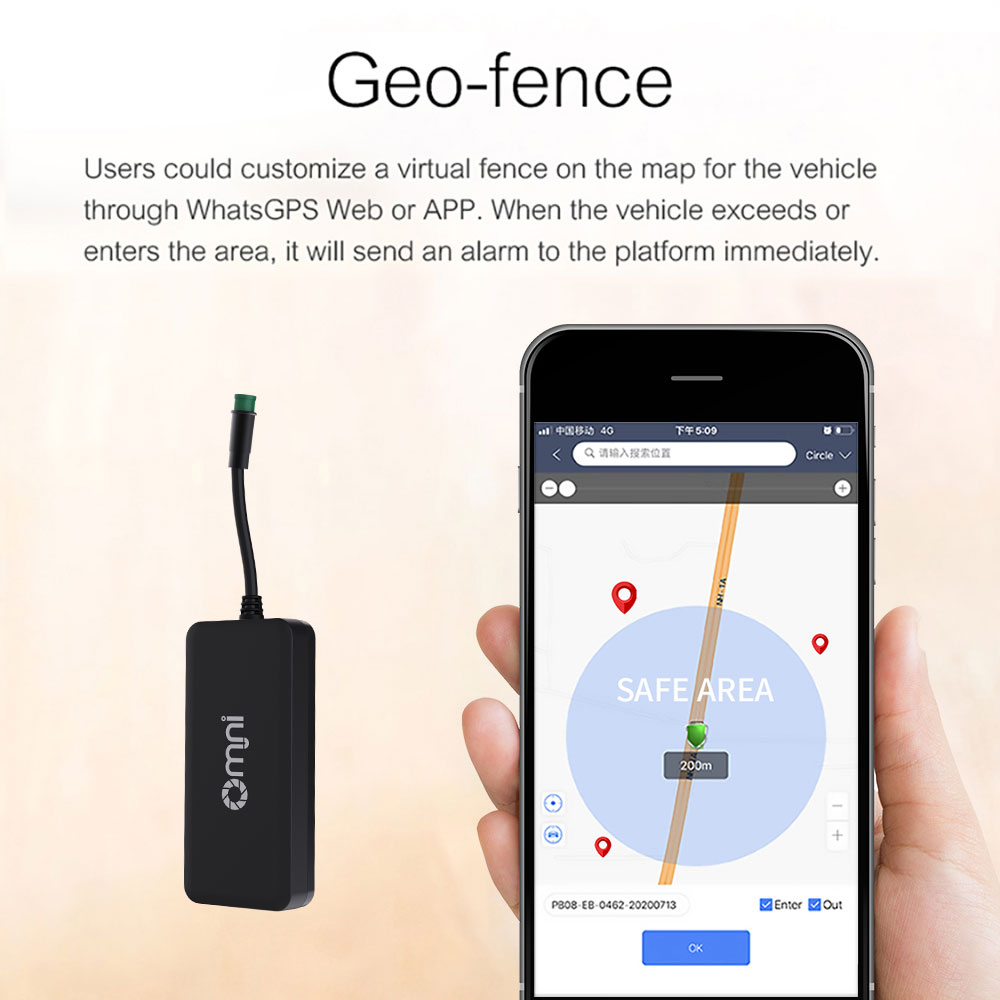

Geo fence. A good gps car tracker supports setting a safety range for the user's vehicle,such as 100 meters of safety range.
Abnormal in the electronic fence will send an alarm message.
In this way, the user can find the vehicle danger in time to avoid unnecessary losses.
Why you need an automotive gps tracker for your car?
No matter how old or new your car is,it is your property.GPS positioning allows you to master the status of the car in real time.
Even if your car is parked a little far,you don’t need to be fear of theft.because there is built-in intelligent anti-theft system.
So it is necessary to add car positioning tracker for cars.It is so convenient for owners remote monitoring of the vehicle state
and looking for the car when missing.
