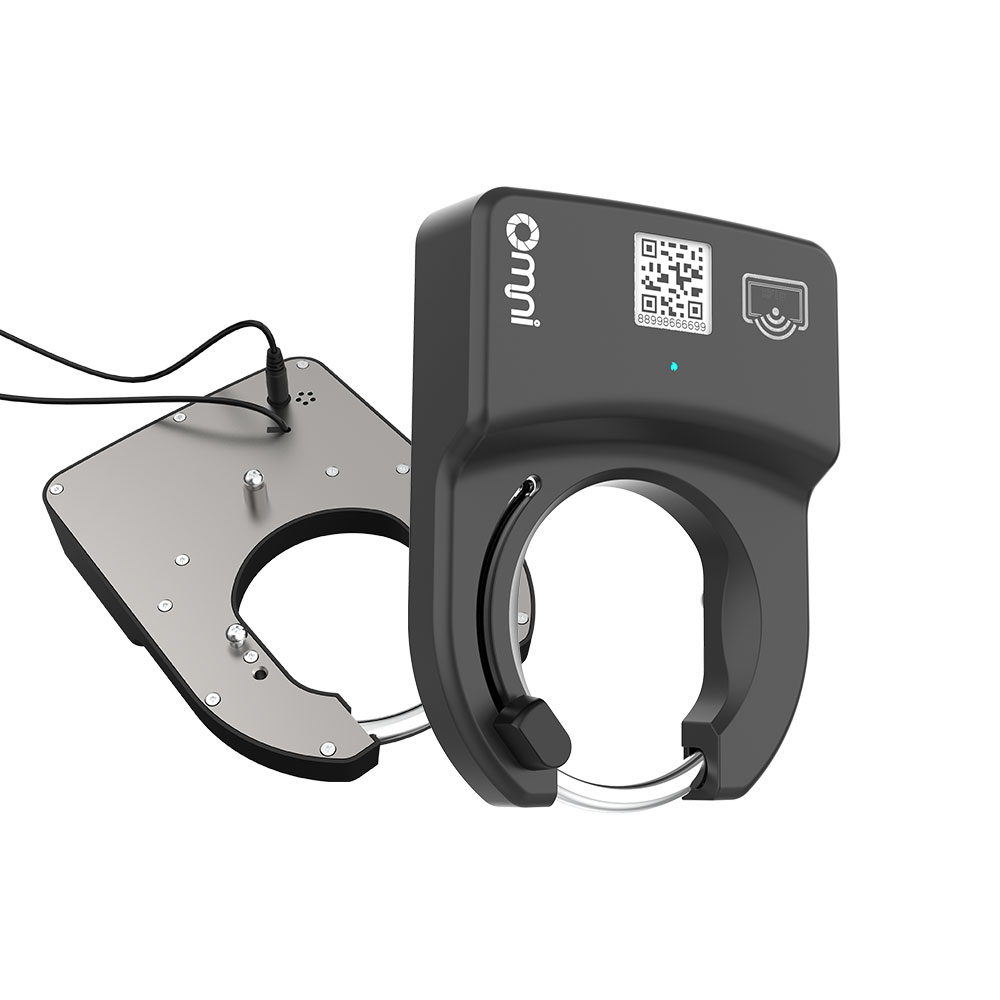

OC32 Built-in IoT Smart Bicycle Sharing Lock
The OC32 smart bicycle lock provides QR system with gps tracker for e-bikes and bikes. It's built-in IoT technology with advanced stable functions for vehicle rental sharing projects. Lower cost and easy operations.
Size: L194×W148×H39MM
Communication:2G/NB/LTE/GPRS/BLE/CATM1
Positioning:GPS/WIFI/GLONASS
Battery:2pcs 6000mAh or 1pc 8000mAh lithium batteries

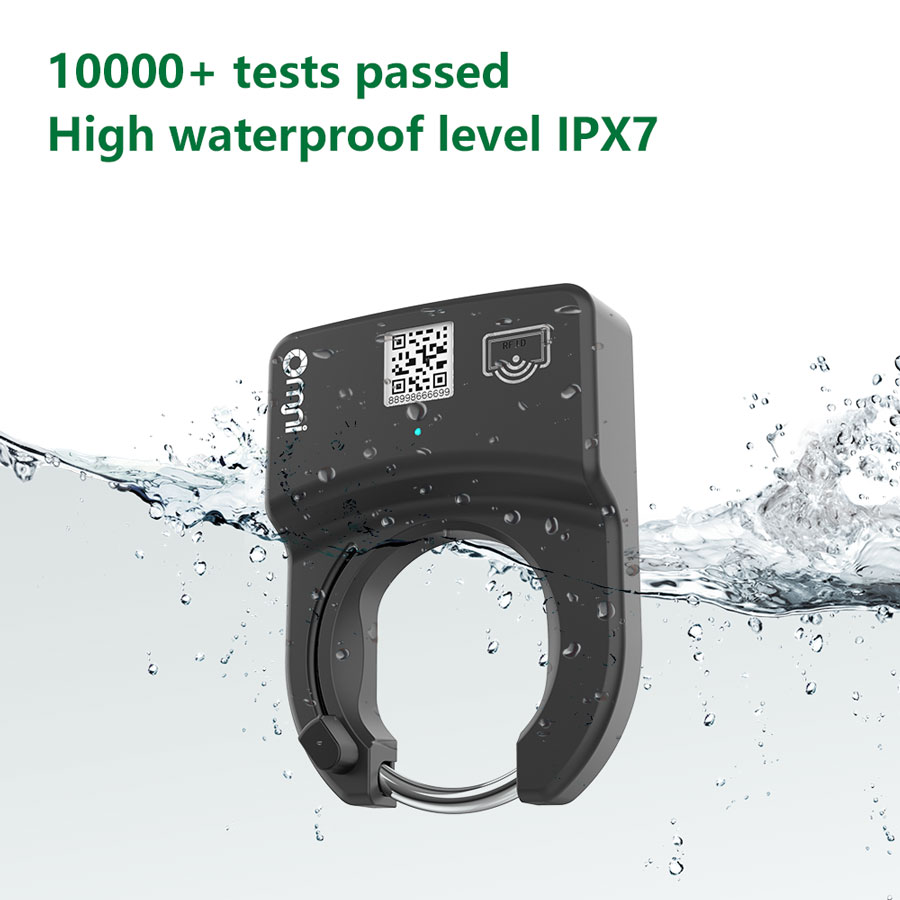

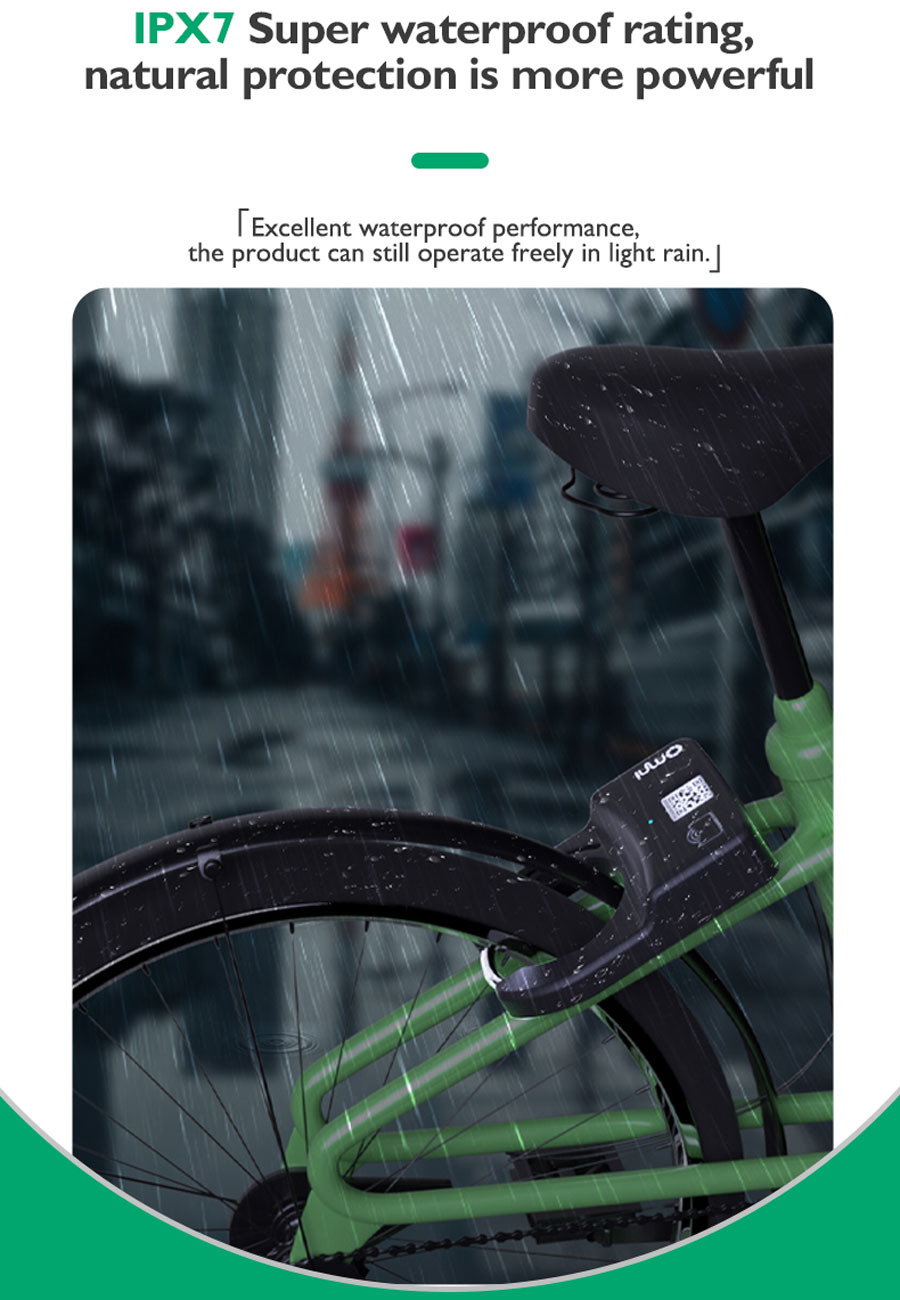

Water proof level: IP67
Material: front cover is PA66+30%GF,back cover is aluminium alloy
Weight:0.85KG
Thicker lock catch diameter:10MM
OC32 smart bicycle lock is a GPS positioning smart lock for sharing bicycles and electric bikes.

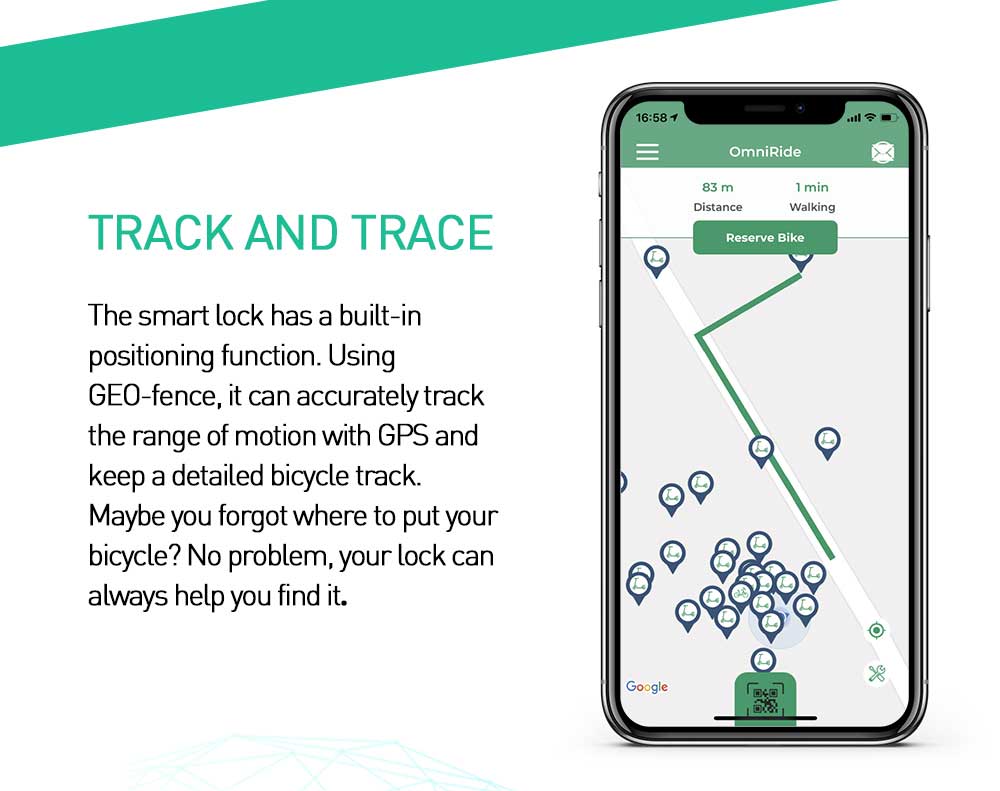

The smart bicycle lock has 4G network remote control,GPS real-time positioning,Bluetooth communication,vibration,detection,
anti-theft alarm and other functions.
The smart bicycle lock applies with 4G or Bluetooth to interact with the background and bike sharing APP to achieve real-time
vehicle control and status reporting.
Omni provides the whole bike share solution which is user APP,operator APP and backend besides smart bike lock.
Our APP and backend can be for renting,and we also can integrate our smart bike lock with your own system.They're also
for OEM&ODM services.
How to unlock the vehicles and ride?
3 unlock methods:
1) Using the phone APP to scan the QR code on bikes or smart bike locks,the unlocking is done.
2) Using RFID card to unlock
3) Using server to unlock remotely
More features:
Unlock method: Network and Bluetooth
Lock method: manual lock
Indicator light: Blue light on:the lock network is connected to the server
Adapter charging status: charging red light is on,full blue light is on
Buzzer: loudness>65DB,When the bike / ebike is locked, the mobile vehicle alarms and the lock is closed
DC charging: 6VDC/3A
Battery: rechargeable lithium battery:3.7V/8000mAh/6400mAh optional (the smart bike lock is normally connected to the server,
it will be standby for 1-2 months at 25℃）
Working temperature: -10℃～ +60℃
Working humidity: 10～ 95%
Storage temperature: -40°C ～+80°C
SIM card size: medium card（Micro-SIM）
Mounting screw: M5 diameter
Power adapter: 6VDC/3A (UK, US, Australia and other is optional)
