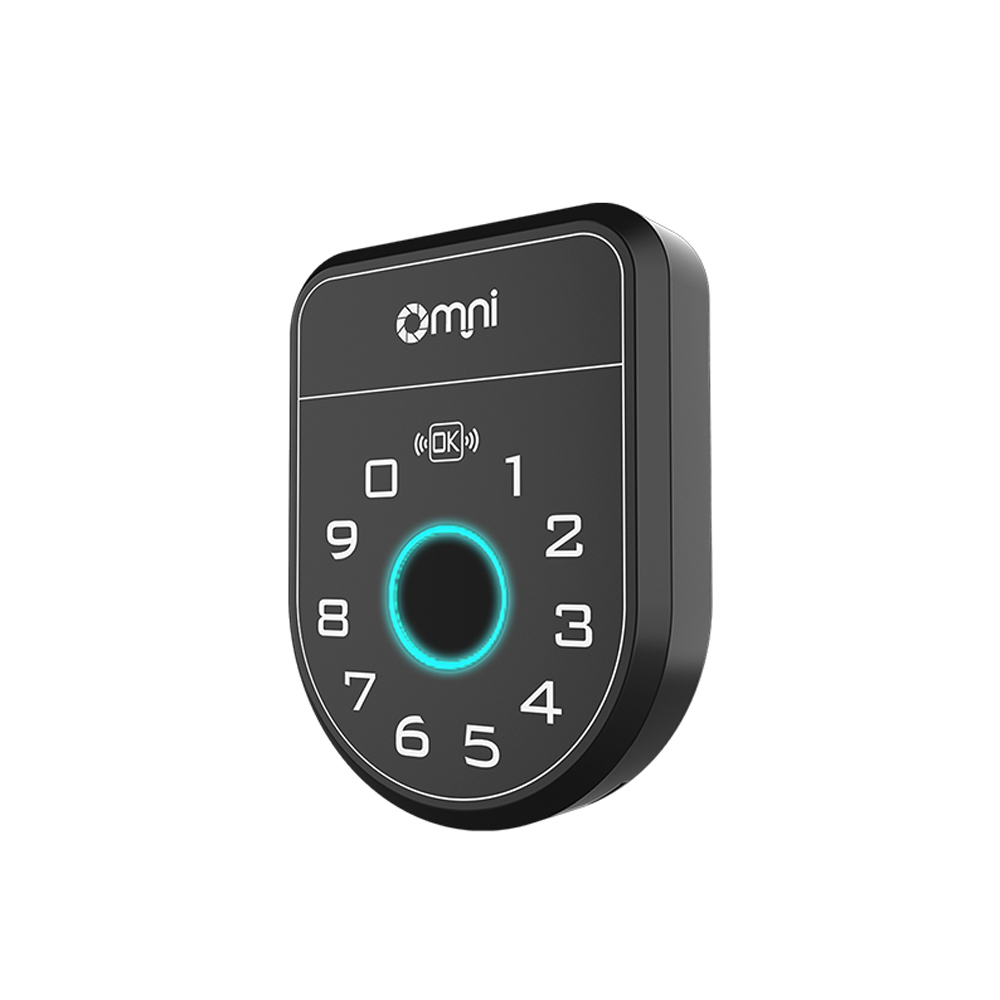

Product: cabinet lock
Cabinet lock with smart abilities
Waterproof level: IPX6
Number of users: max to 45 users
Cover material: plastic

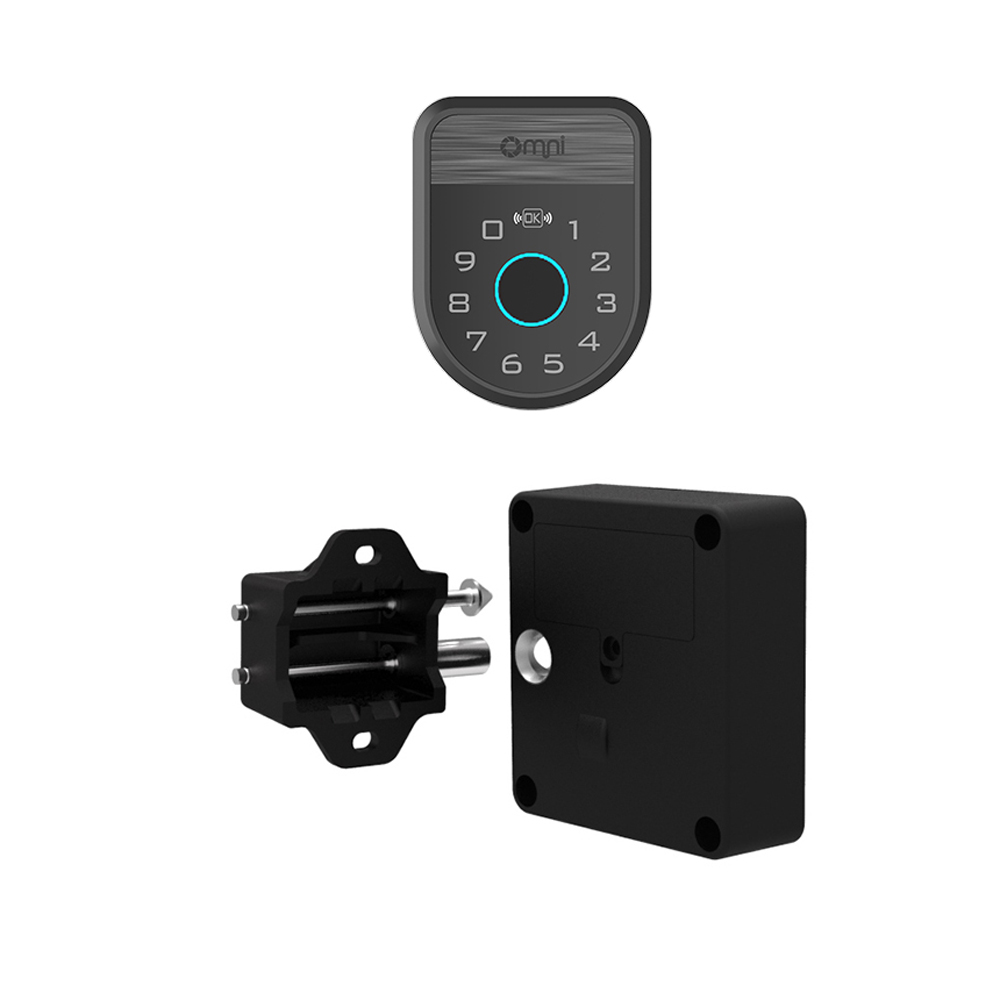

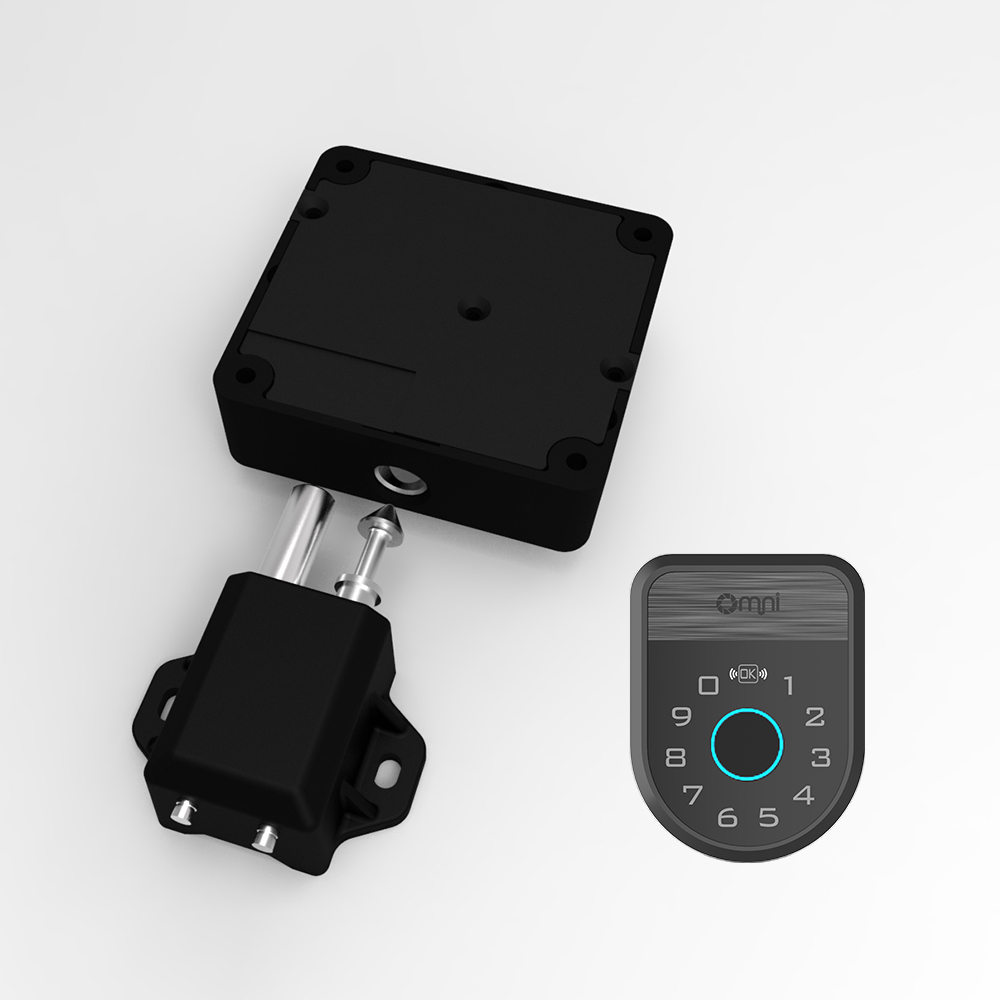

Lock body: 58*63*22.5MM

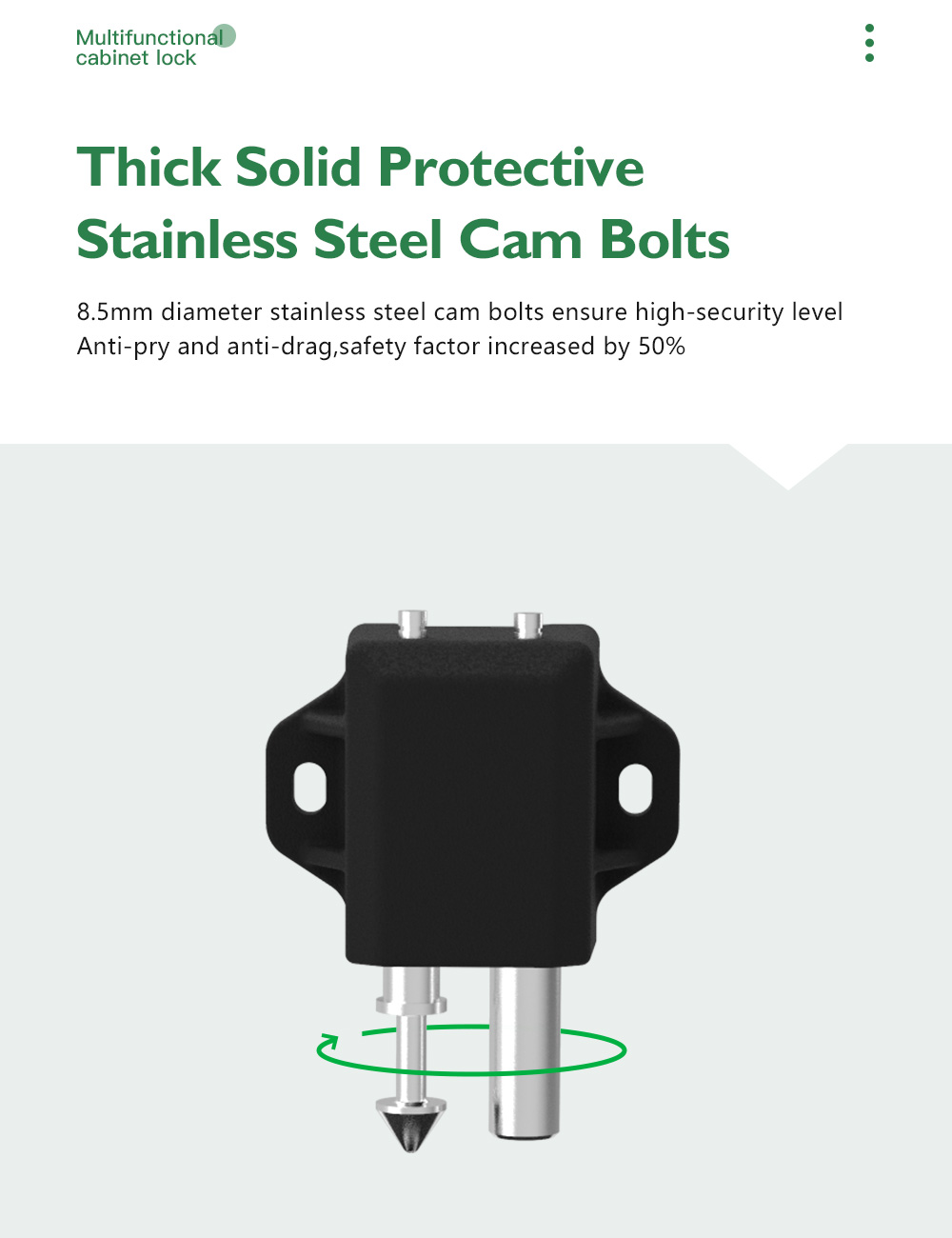

Bolt latch: 55*44.5*22MM
Certified with CE,RoHs,FCC-SDOC
OMNI Designs and Manufactures Cabinet Locks with Advanced Technology

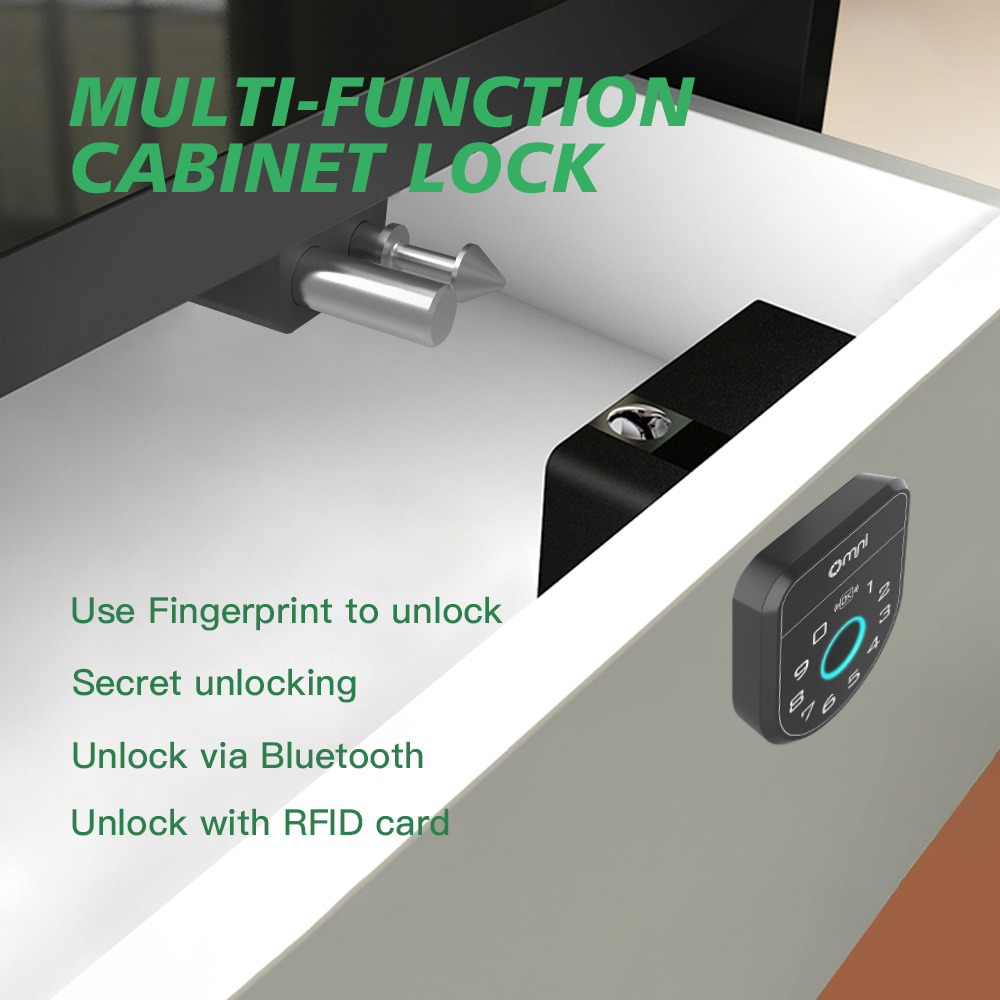

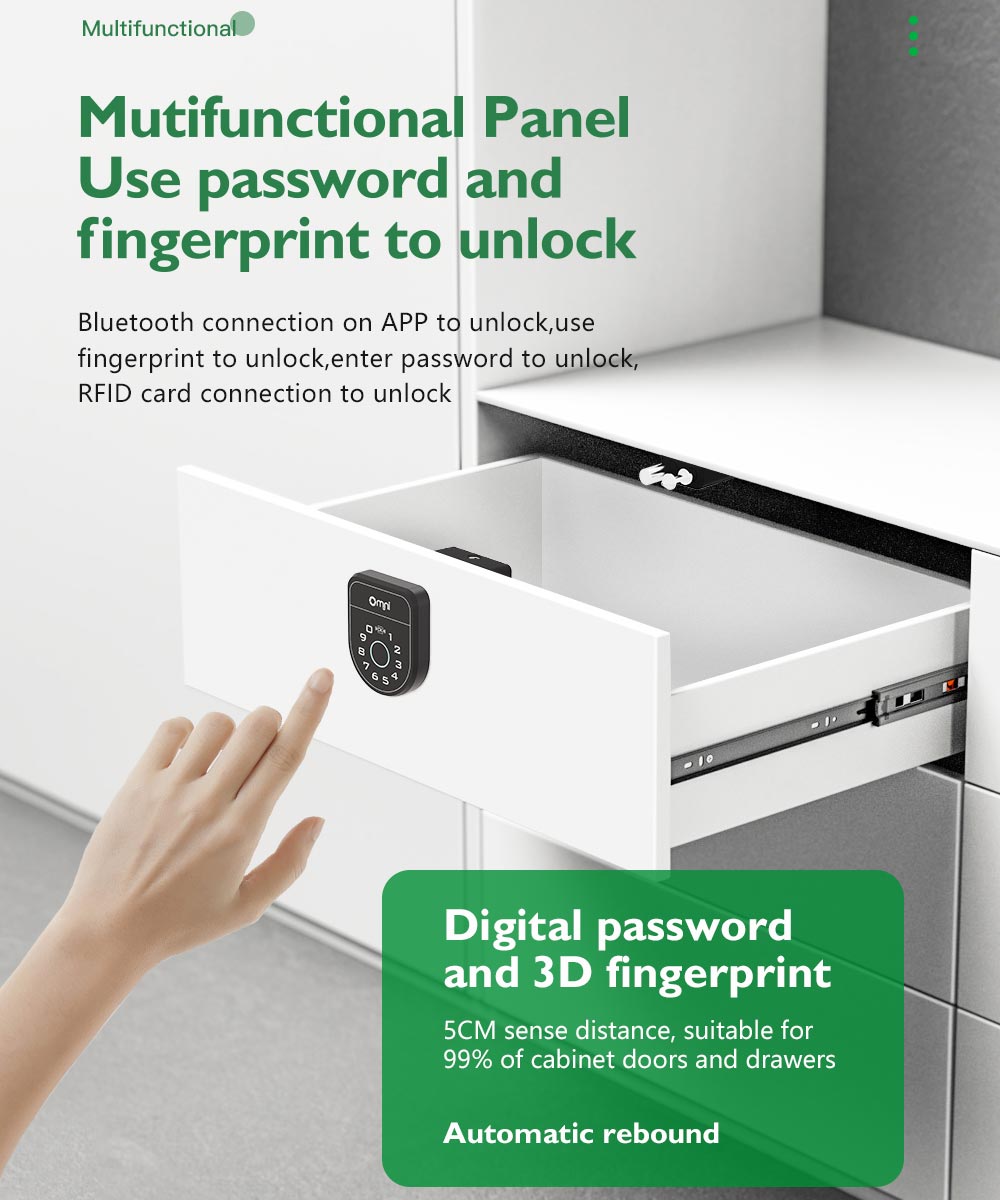

The features of multifunctional cabinet locks

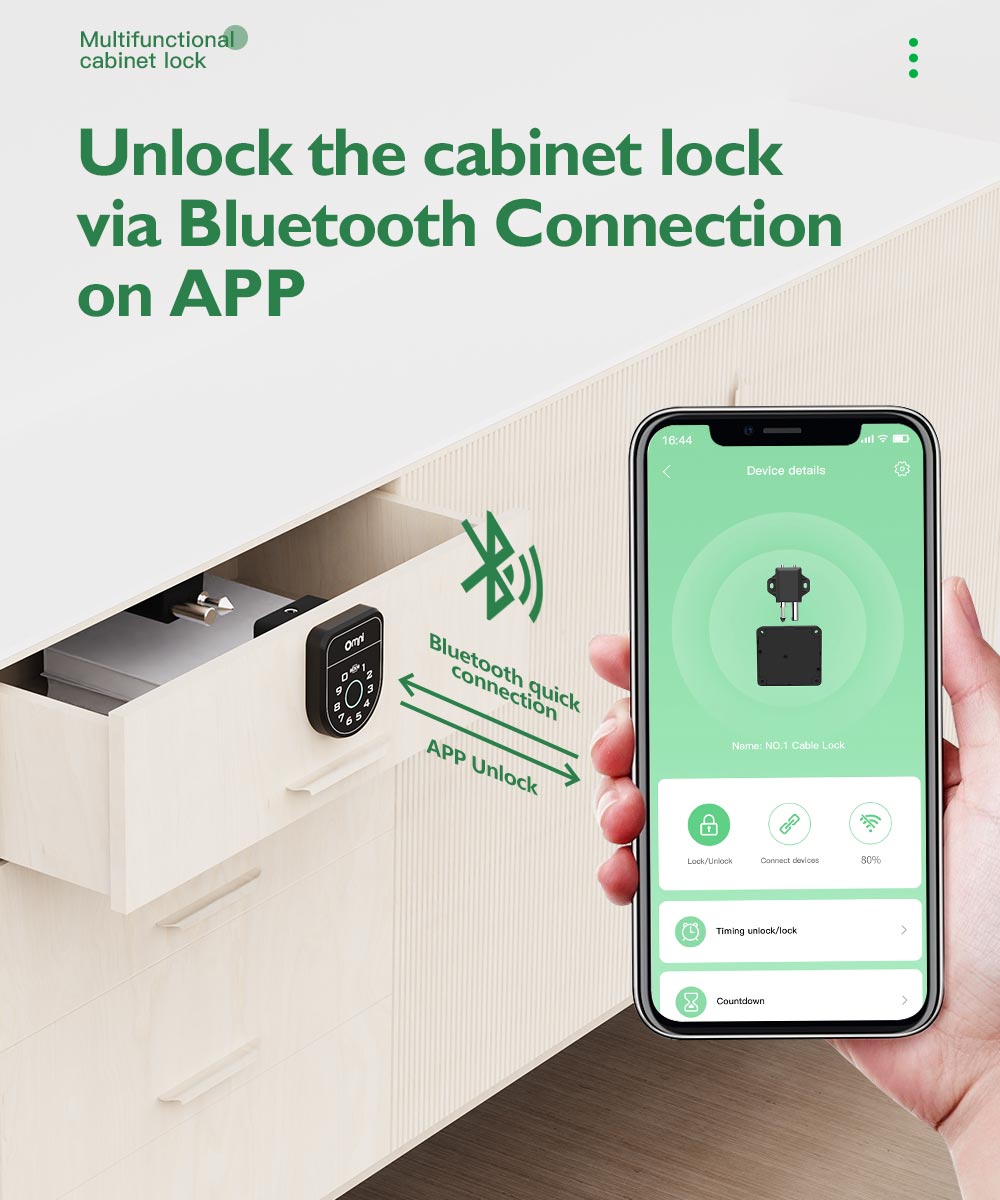

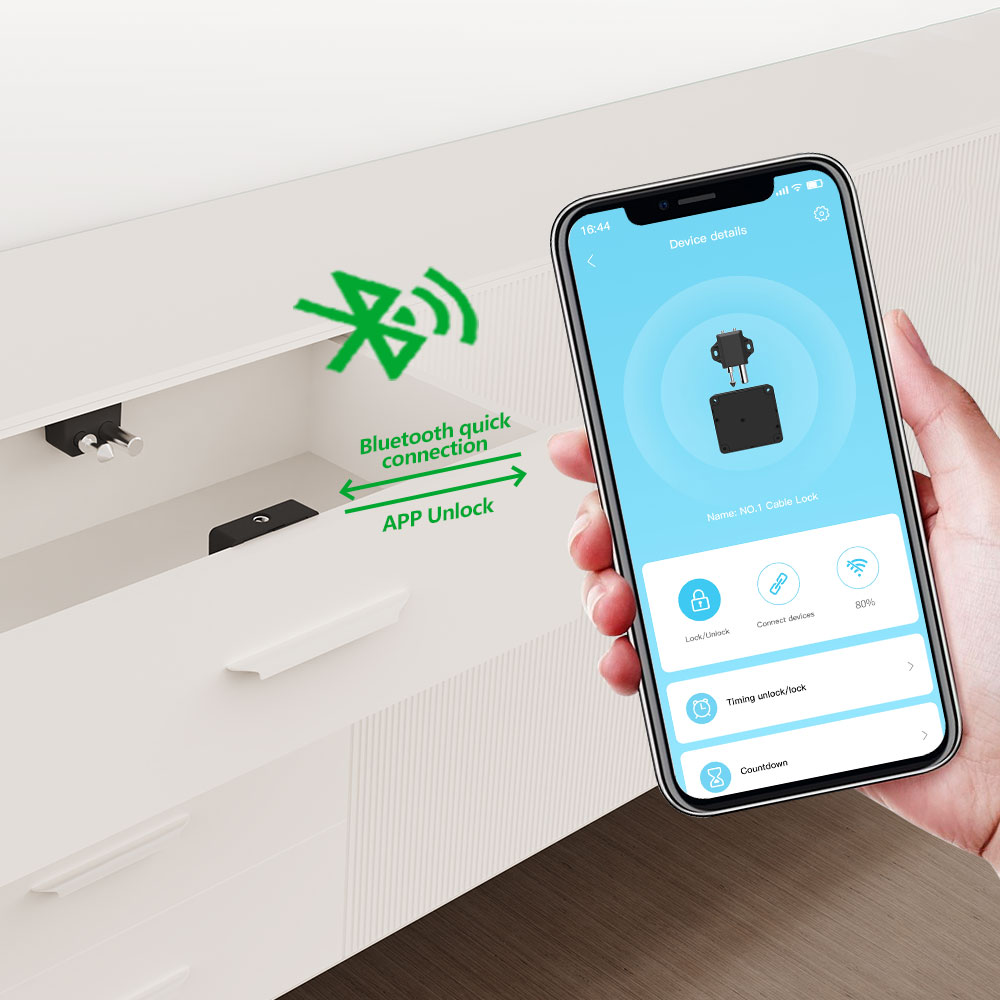

1, Bluetooth connection to unlock
2, Password connection to unlock
3, Use RFID card to unlock
4, Use fingerprint to unlock

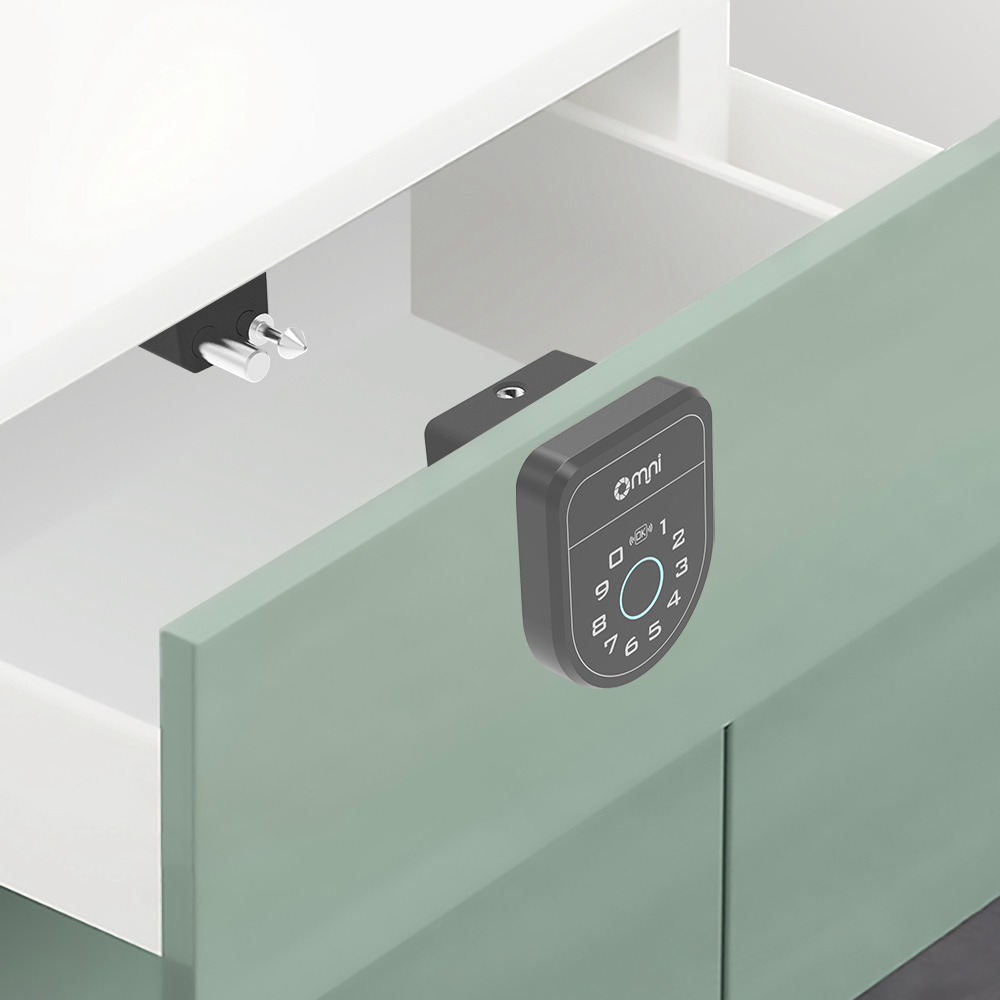

5, Lossless installation
6, Ultra-low power consumption
Omni cabinet locks are multifunctional,they're built-in smart abilities.
More Function Description
1. To wake up, press any touch button and the white light will turn on, indicating that the cabinet lock is awake.
2. Unlock the keypad, enter the correct password, the green light will turn on and a long beep will appear, the cabinet lock will be unlocked, and the lock will be locked after 5 seconds. During this period, the cabinet lock cannot be unlocked again.
3. Fingerprint unlocking, keep the fingerprint on the button still for about one second. If the fingerprint is correct, the green light will turn on and a long beep will appear, then the cabinet lock will be unlocked.
4. Unlock via the RFID card. Put the RFID card close to the panel,if the RFID card is correct, the green light will light up and a long beep will sound, then the lock will be unlocked.
5. In factory mode, any password with more than 6 digits and any RFID card can be used to unlock the lock. The administrator password is 123456.
6. In user mode, if there is a password entered, RFID card connected or fingerprint connected, it will switch to user mode, and only the registered password, RFID card or fingerprint can support the unlocking.
7. Delete all passwords to restore factory mode; add at least one user password to switch to user mode.
8. If you enter the wrong password 5 times in a row, the keyboard will be locked and the red light will stay on. It will return to normal mode after 2 minutes.

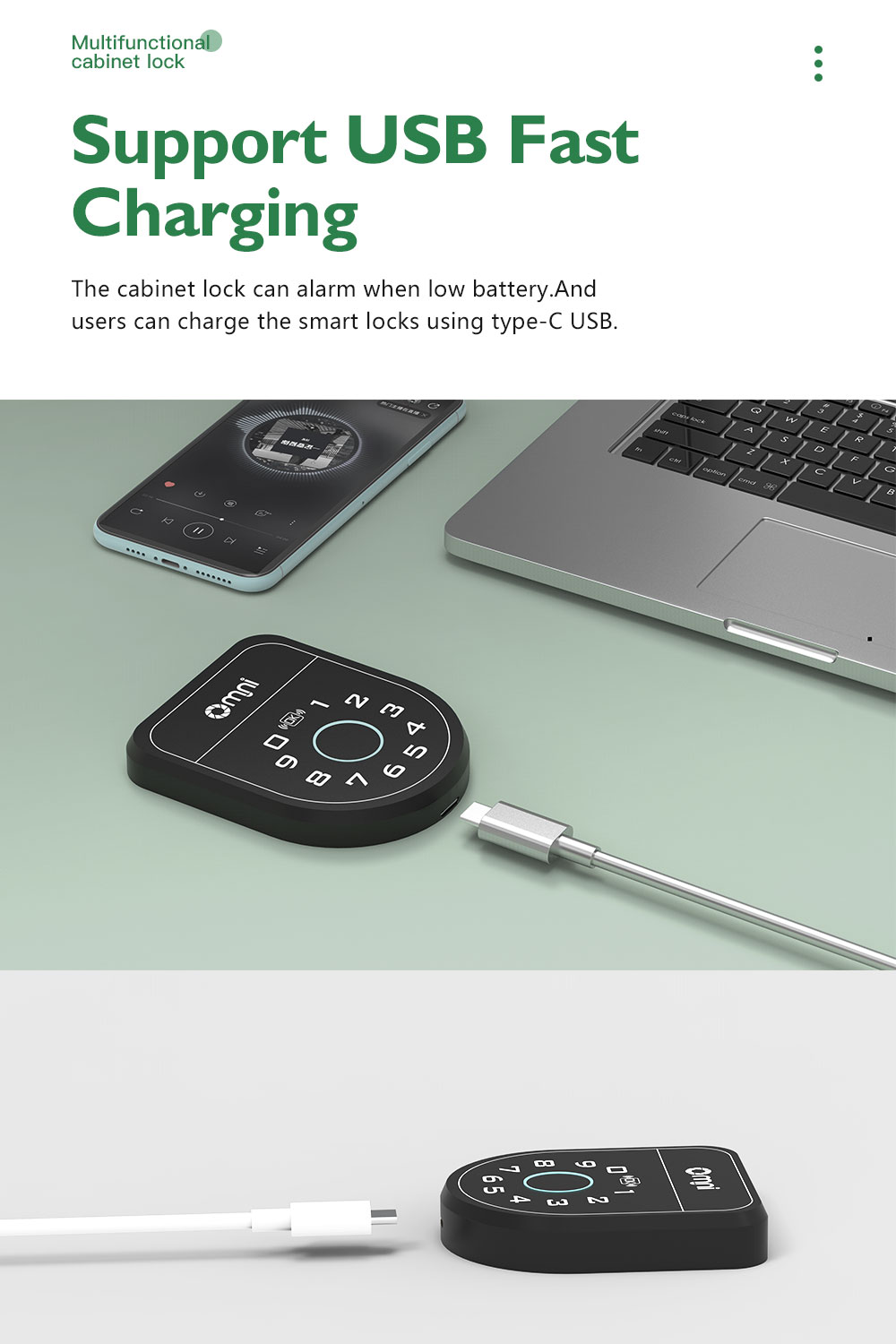

9. Charging: Use a type-c USB cable to charge the machine. When charging, the yellow light flashes, and when full, the yellow light turns off. It is recommended that users use 5V/1A or above for the adapter.
Omni has own factory and produce cabinet locks.There's worldwide delivery service of cabinet locks.And surely the quality can be guaranteed.And all different certificates can be done based on different requirements.
